Building kits sold nationally

Installation of buildings only available within 50 mile radius of El Dorado, KS

 choose from a range of barn and building packages WITH MID-KANSAS POLE BARNS.

Barn and Shed Packages

Package A

Call for current pricing



  • 40' width x 30' length x 10' height
  • With A 10' x 30' front porch
  • 12'' overhangs on all four sides
  • 10' o/c roof trusses
  • 3-ply laminated columns at 10' o/c
  • 2 x 6 treated skirt board
  • 2 x 4 roof purling at 24'' o/c
  • 29 Ga. painted steel
  • 1-10' x 8' insulated overhead doors
  • 1-3' x 3' white, vinyl window
  • 1-3' entry door
  • Wainscoting
  • Screw fasteners
  • Concrete slab not included

PACKAGE b

CALL FOR CURRENT PRICING



  • 40’ width x 60’ length x 14’ height
  • Porch overhang 8 ’x 16’
  • 1’ overhang on all other sides
  • Soffits under THE porch
  • 2 x 6 laminated treated posts 10’ o/c
  • 2 x 6 treated skirt board
  • 10’ o/c engineered roof trusses
  • 2 x 4 side girts at 24” o/c
  • 2 x 4 roof purling at 24” o/c
  • 2 x 6 treated bottom plate
  • 2 x 6 treated top plate
  • 29 Ga. Painted steel siding and trim
  • Screw fasteners
  • 1-3’ steel entry door
  • 1-16’ x 10’ overhead insulated door with windows
  • 1-10' x 10' overhead insulated door with windows
  • 1-3' x 3' white, vinyl window
  • Wainscot
  • Concrete slab not included

Package c

Call for current pricing



  • 30’ width x 50’ length x 14’ height
  • 2 x 6 laminated treated posts 10’ o/c
  • 2 x 6 treated skirt board
  • 10’ o/c roof trusses
  • 2 x 4 side girts at 24” o/c
  • 2 x 4 roof purling at 24” o/c
  • 2 x 6 treated bottom plate
  • 2 x 6 treated top plate
  • 29 Ga. Painted steel siding and trim
  • Screw fasteners
  • 1-16’ x 12’ insulated overhead door
  • 1-8’ x 8’ insulated overhead door
  • 3-3’ x 3’ vinyl sliding windows
  • 1-3’ steel entry door
  • 8’ x 20’ patio awning
  • Concrete slab not included

PACKAGE d

CALL FOR CURRENT PRICING



  • 44’ width x 40’ length x 11'
  • Step up at the center for 16’
  • 2’ tall skylight down each side
  • 2 x 6 3-ply laminated treated posts 10’ o/c
  • 2 x 6 treated skirt board
  • 10’ o/c stick-built roof trusses
  • 2 x 4 side girts at 24” o/c
  • 2 x 4 roof purling at 24” o/c
  • 2 x 6 top plate
  • 2 x 4 roof and wall purling 2’ o/c
  • 1-12 ’x 14’ non-insulated overhead garage door
  • 2-9’ x 9’ non-insulated overhead garage doors
  • 1-3’ steel entry door
  • 29 gauge galvanized steel
  • Screw fasteners

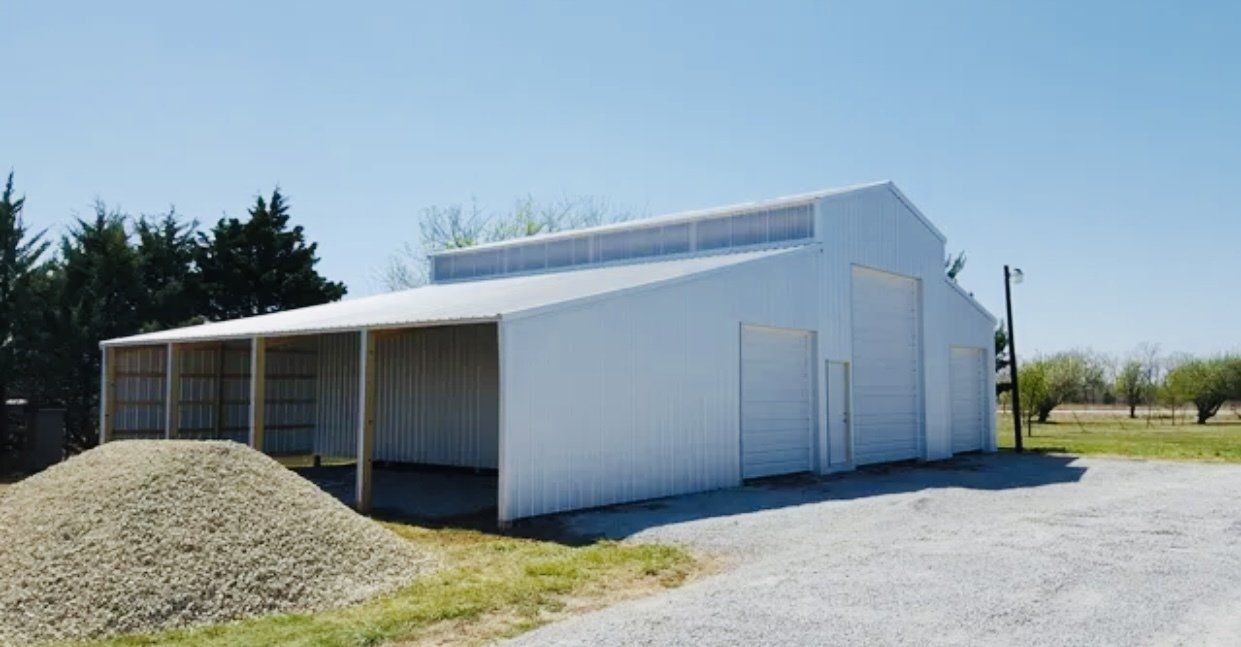

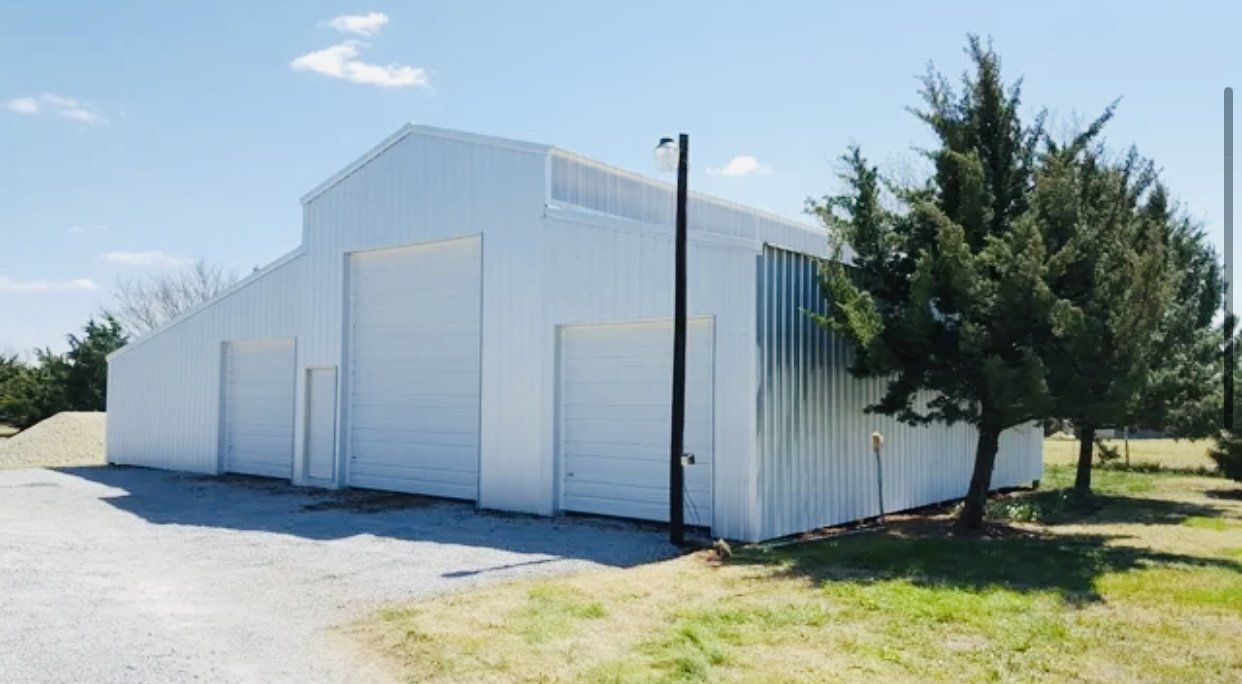

  • 40’ x 16’ lean-to closed in on each end and open on long sides

*Please provide your Name, City, Phone Number (will only be used if we have a question while bidding), and email address.


Wood Framed vs. Hybrid Steel Framed:

Wood- Traditional framed, trusses and posts are constructed with treated lumber, lower cost
Hybrid- Trusses and posts are steel-constructed, stronger, and higher cost vs. wood


Metal Panels:

29 gauge and 26 gauge are available. 26 gauge will be thicker steel (approx. 25% thicker) this is usually used for residential buildings or high-end Ag buildings. 29 gauge generally is all that is needed for a typical Ag building and will reduce your cost more than if the 26 gauge is used.

​

Doors:

Overhead doors, Sliding doors, Entry doors (typically 3') Also insulated or non-insulated.


Windows:

Sizes and number of windows, standard bid with 3'x3' sliders, and any special requirements you would like. Ex. White, Tan, Casement, Single hung, Sliders...


Insulation:

*Astro-foil insulation gives a R-7 insulation value. This helps control condensation, has a Class A fire rating, and reflects radiant heat.

​

* 2" vinyl-backed insulation is also available. It has an R-11 insulation value. This will cost a little more but will reduce energy costs, help control condensation and improve noise control.


Concrete:

Typically we pour a 4" thick concrete slab for the building pad, however, if there will be heavy equipment going on it, it is preferred to use a 5-6" thick slab.

REQUEST BID
