Building WOOD FRAMED Buildings in Kansas for Over 20 Years
the Difference BETWEEN post frame buildings and hybrid buildings

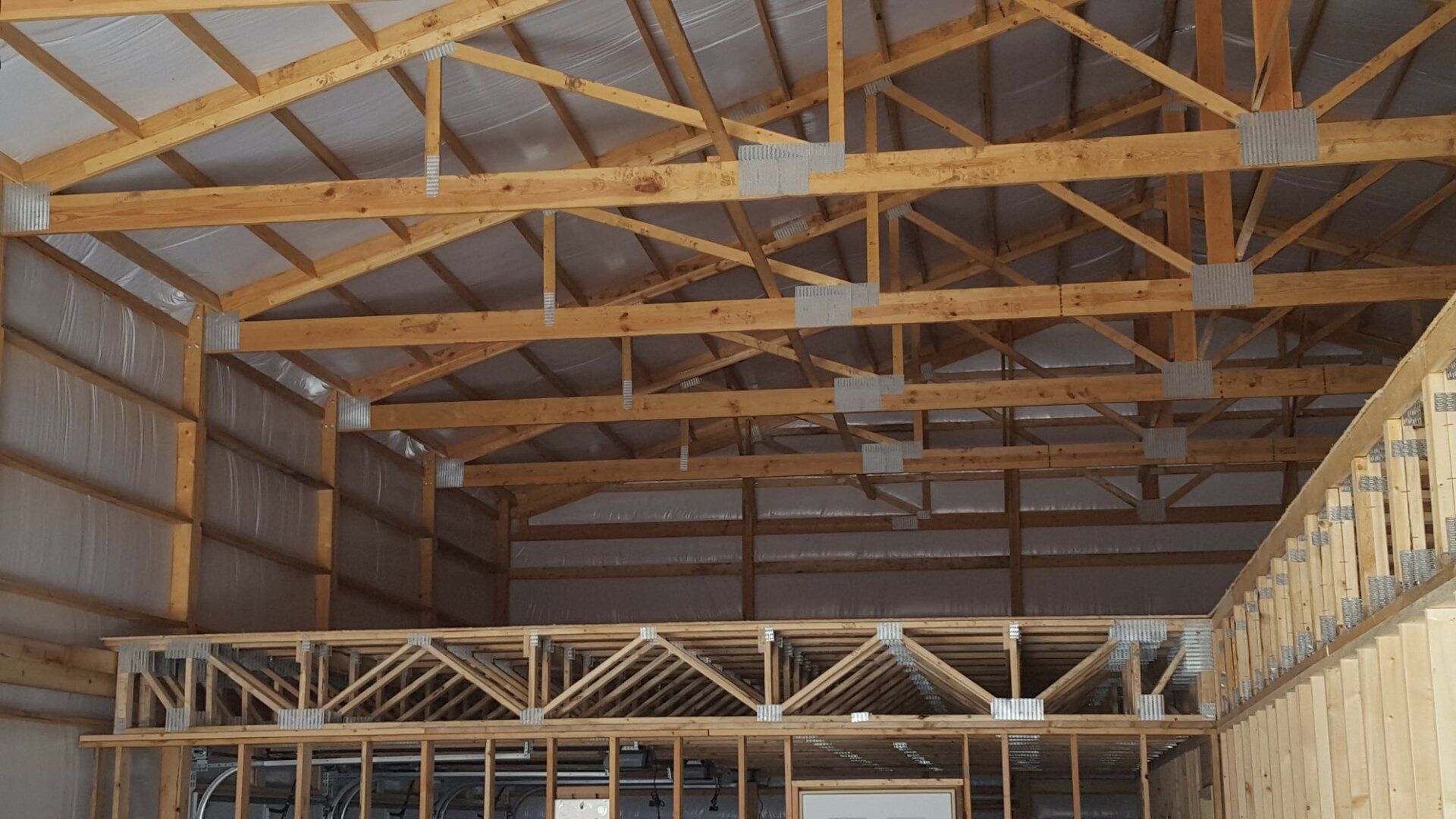

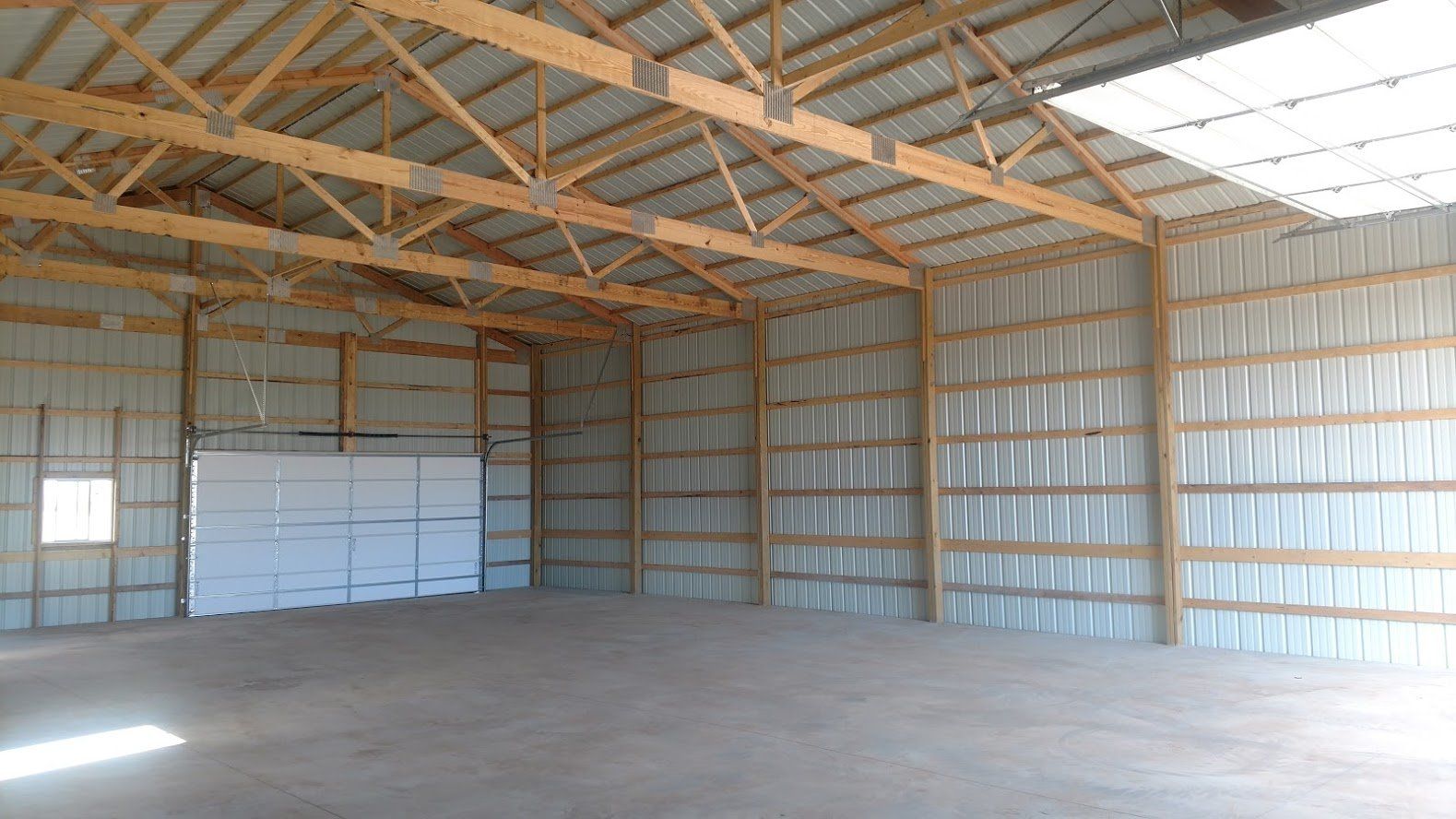

POST-FRAME pole barn
Our barns/ barndominiums feature the following:
- Laminated 3-PLY 2x6 posts
- 2x6" treated BASEBOARD
- Engineered roof trusses
- 2x4" or 2x6" roof purlins
- 2x4" or 2x6" wall gurts
- 26 or 29-GAUGE steel with screw fasteners
- Quality doors and windows
- This option will allow you to upgrade to a perma bracket mounting system or set the posts in the ground

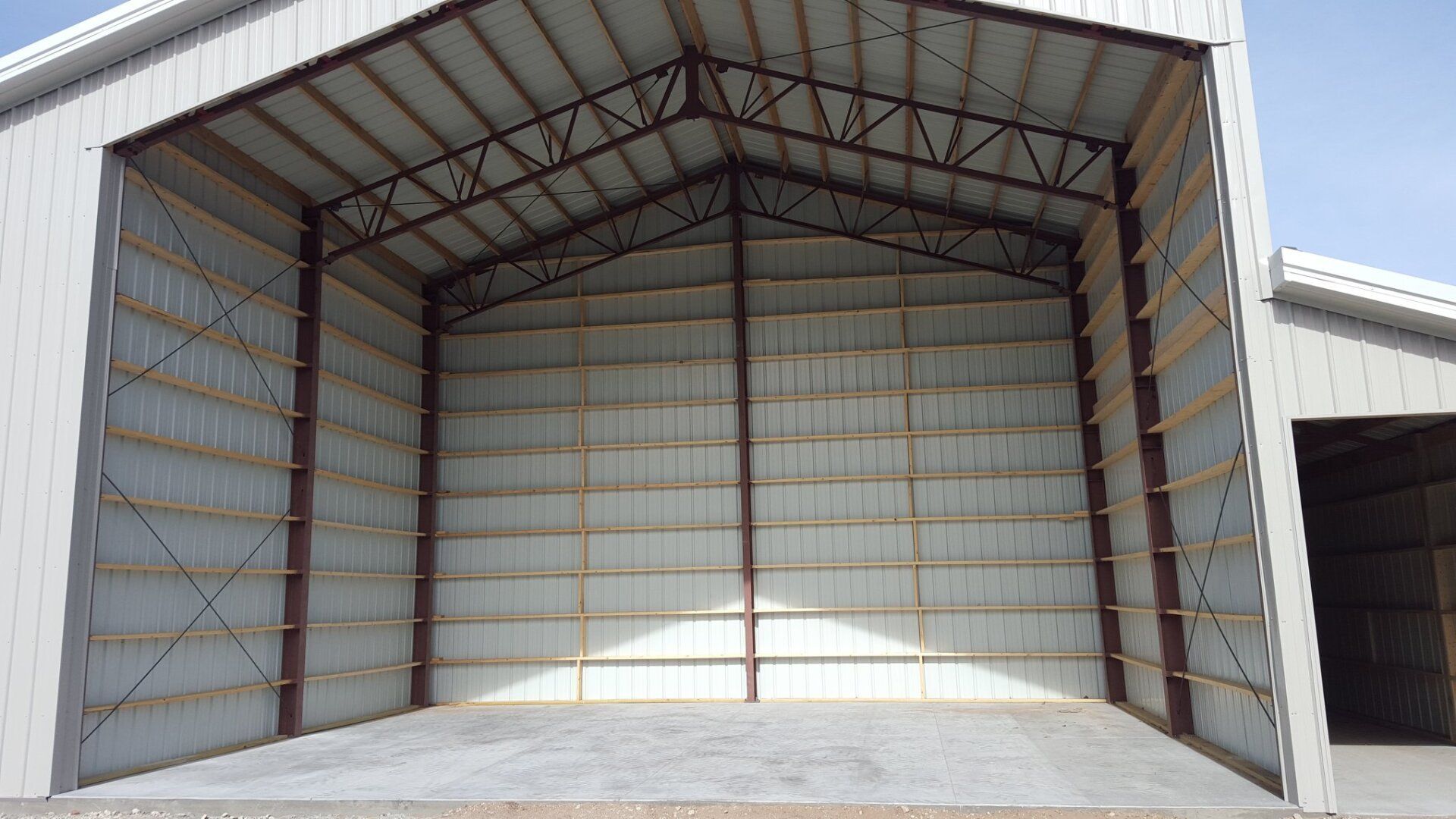

Hybrid steel truss building
This option will combine wood posts with steel, vaulted trusses
- Laminated 3-PLY 2x6 posts
- 2x6" treated BASEBOARD
- Engineered steel vaulted trusses that bolt to wood posts ( for lots of HEADROOM)
- 2x4" or 2x6" roof purlins
- 2x4" or 2x6" wall gurts
- 26 or 29-GAUGE steel with screw fasteners
- Quality doors and windows
- This option will allow you to upgrade to a perma bracket mounting system or set the posts in the ground.
*Please provide your Name, City, Phone Number (will only be used if we have a question while bidding), and email address.
Wood Framed vs. Hybrid Steel Framed:
Wood- Traditional framed, trusses and posts are constructed with treated lumber, lower cost
Hybrid- Trusses and posts are steel-constructed, stronger, and higher cost vs. wood
Metal Panels:
29 gauge and 26 gauge are available. 26 gauge will be thicker steel (approx. 25% thicker) this is usually used for residential buildings or high-end Ag buildings. 29 gauge generally is all that is needed for a typical Ag building and will reduce your cost more than if the 26 gauge is used.
Doors:
Overhead doors, Sliding doors, Entry doors (typically 3') Also insulated or non-insulated.
Windows:
Sizes and number of windows, standard bid with 3'x3' sliders, and any special requirements you would like. Ex. White, Tan, Casement, Single hung, Sliders...
Insulation:
*Astro-foil insulation gives a R-7 insulation value. This helps control condensation, has a Class A fire rating, and reflects radiant heat.
* 2" vinyl-backed insulation is also available. It has an R-11 insulation value. This will cost a little more but will reduce energy costs, help control condensation and improve noise control.
Concrete:
Typically we pour a 4" thick concrete slab for the building pad, however, if there will be heavy equipment going on it, it is preferred to use a 5-6" thick slab.
